RATTMMOTOR Nema34 12N.m Closed Loop Hybrid Servo Motor Stepper Motor 12nm 1700oz-in 156mm 6A 2 Phase & HSS86 Servo Driver & 3m Wire CNC Controller Kit for CNC Router Engraving Milling Machine
4.3 (106 items)
Limited Time SaleUS$105.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 226246849 | Release Date | 2026/05/09 | List Price | US$70.00 | Model Number | 226246849 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

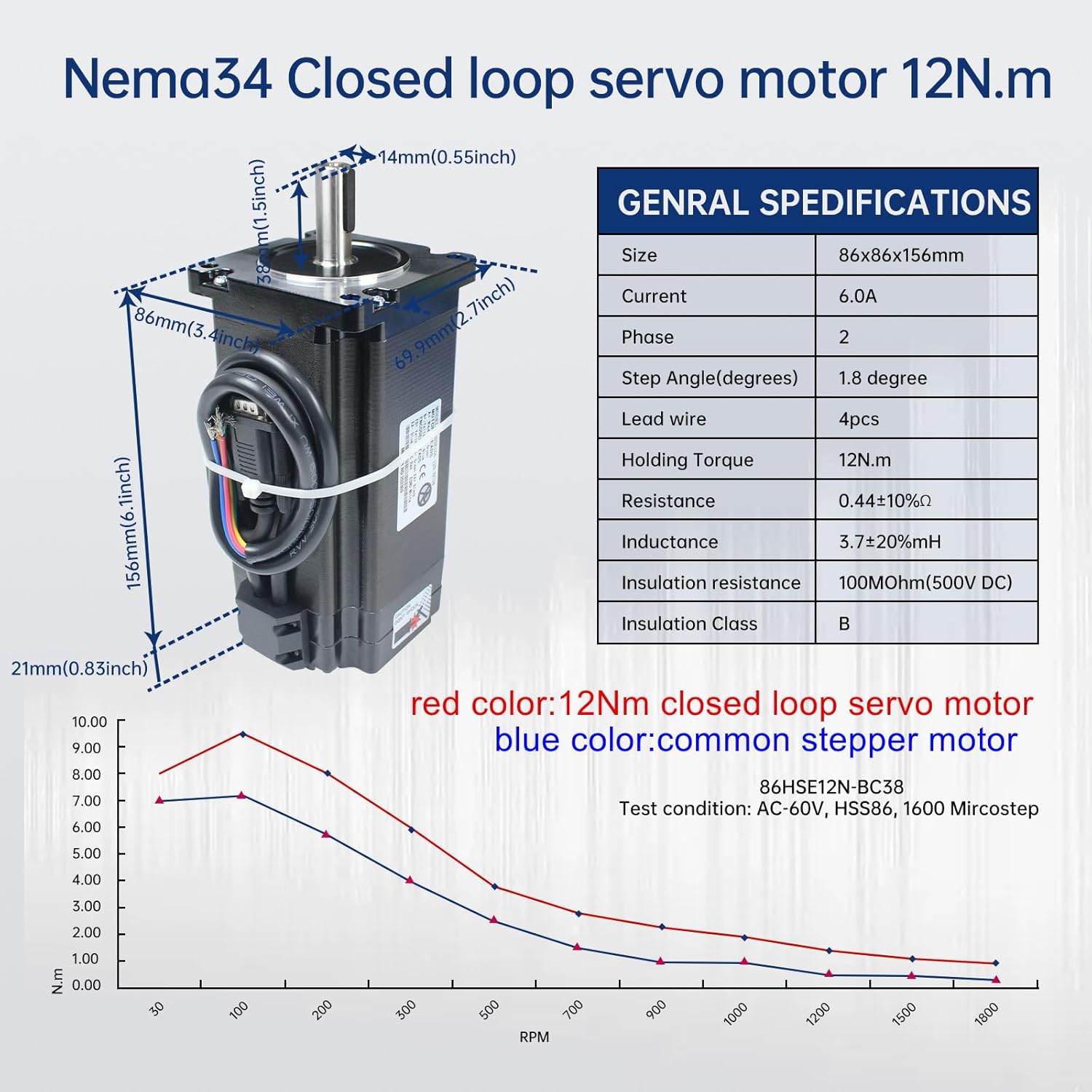

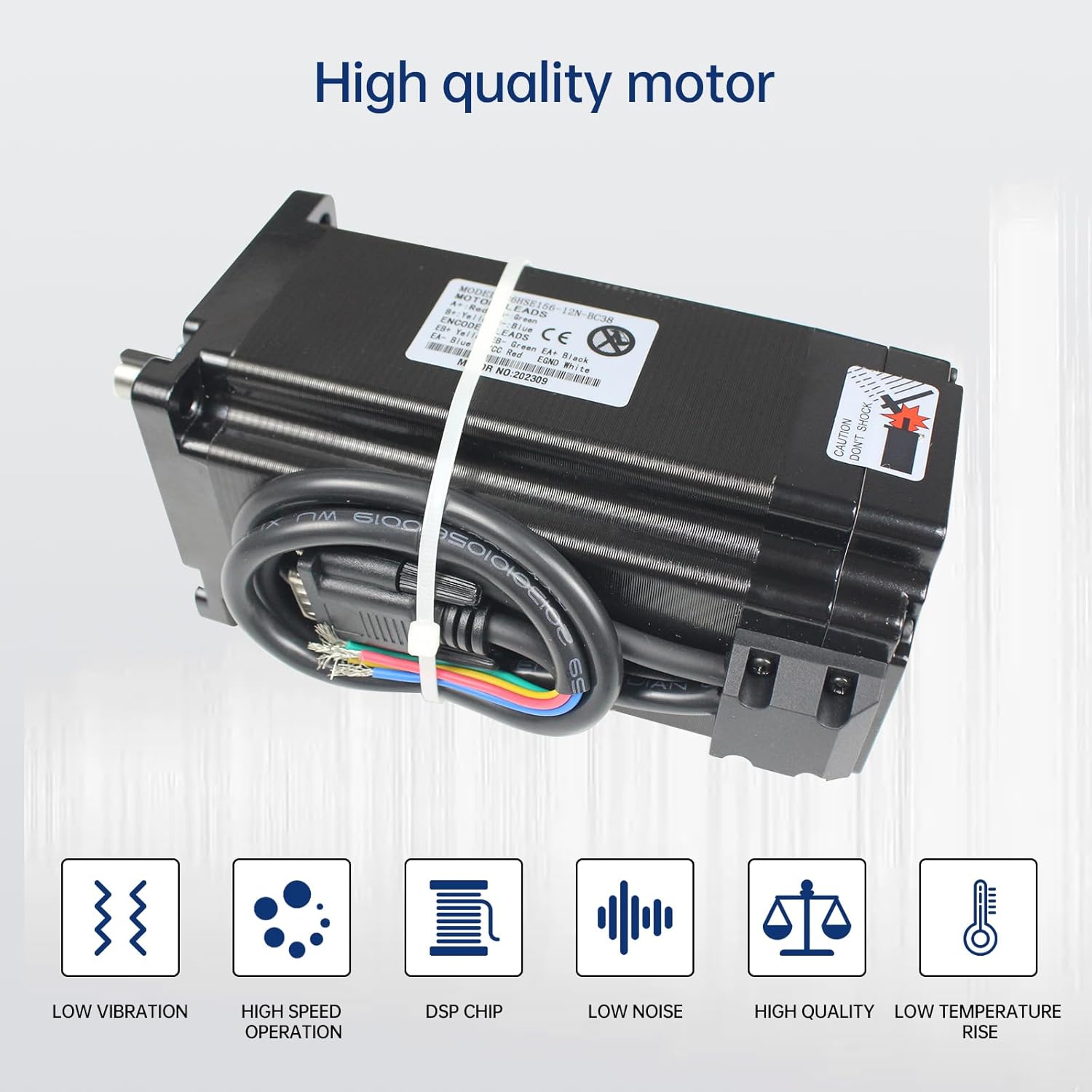

- Specifications of Motor: Model is 86HSE156; Holding Torque:12N.m 1700oz-in; Rated Current:6A; Peak Current:8A; Phase:2-Phase; Size:86x86x156mm; Step Angle:1.8 degree; Motor Lead Wire: 4-Wires; Encoder lines:1000; Shaft diameter: 14mm
- Specifications of Driver: Model is 2HSS86; Type:2-Phase Hybrid Stepper Servo Driver; Frequency:0-200KHz; Insulation resistance:>=500MΩ; Voltage: AC 24-70V or DC 30-100V input
- Advantages:Stepper motor closed loop system,never lose step; The stepper motor control has a new generation of 32-bit DSP; The vector control technology can ensure the accuracy of the motor; Improve motor output torque and working speed; Automatic current adjustment based on load; Pulses response frequency can reach 200KHZ; 16 kinds microsteps choice,highest 51200 microsteps/rev
- More Functions: It supports over-current protection, over-voltage protection, position outside the tolerance protection; The build-in place in position and alarm output signal can help the upper monitor to monitor and control,the function of position ultra difference alarm can ensure the machine work safely
- Widely used: Closed loop stepper system can be applied to all kinds small automatic equipment and instrument;Such as engraving machine, special industrial sewing machine, stripping machine, marking machine, cutting machine, graph plotter, cnc machine, automatic assembly equipment and so on;This motor driver kit fits all types of machine load conditions including pulley and low stiffness pulley without adjusting the gain parameters
| UPC | 785004502223 |
|---|---|
| ASIN | B07411XP67 |
| Speed | 1700 RPM |
| Voltage | 500 Volts, 70 Volts |
| Brand Name | RATTMMOTOR |
| Item Weight | 14.2 Pounds |
| Part Number | S12N |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Material Type | Aluminum |
| Shaft Diameter | 14 Millimeters |
| Item Dimensions W x H | 3.39"W x 3.39"H |
